How to Pour a Garage Cement Slab From Prep to Cure

Pouring a garage concrete slab involves five main steps: planning the slab, preparing the sub-base, installing reinforcement, pouring and finishing the concrete, and curing the slab properly. Most residential garage slabs are 4 inches thick and require a compacted gravel base, reinforcement, and control joints to prevent cracking over time.

The guide below walks through each stage in order, so you get a flat, crack-resistant slab that holds up under daily vehicle traffic for decades.

Plan the Slab Before Excavation

Proper planning prevents expensive slab failures later. Before excavation begins, confirm local permit requirements, determine slab thickness based on vehicle weight, evaluate soil conditions, and decide between a monolithic slab or a separate footing and stem wall system.

Check Local Codes and Permits

Foundation installation rules vary by location. Your local building department may require specific footing depths, reinforcement spacing, slab thicknesses, or frost protection methods depending on your climate and soil conditions.

Calling before excavation starts can help you avoid failed inspections or expensive rework later.

Choosing the Right Garage Slab Thickness

For most residential garages supporting passenger vehicles, lawn equipment, motorcycles, or ATVs, a 4-inch concrete slab is standard. Heavier vehicles or workshops with lifts may require a 5-inch or 6-inch reinforced slab foundation.

Evaluate Soil Conditions and Drainage

Poor soil preparation causes more slab failures than weak concrete. Expansive clay soils, standing water, and frost heave can all crack or lift a garage floor over time.

Walk the site after heavy rain to identify drainage problems before excavation begins. If water pools near the slab area, correct grading issues first.

Materials and Tools Checklist

Having materials ready before the pour starts helps prevent delays once the concrete placement begins.

Materials:

• 3,000–4,000 PSI concrete mix
• Crushed gravel or #57 stone
• 6–10 mil vapor barrier
• Wire mesh or rebar reinforcement
• Form boards and stakes
• Anchor bolts
• Curing compound or plastic sheeting

Tools:

• Plate compactor
• Portable concrete mixer
• Screed board
• Bull float
• Magnesium float
• Steel trowel
• Concrete groover
• Push broom

Prep the Site and Build the Sub-Base

The sub-base supports the entire concrete slab. Weak or poorly compacted soil leads to settling, cracking, and uneven concrete surfaces later.

Excavate to Grade

Remove all topsoil and organic material from the slab area. Excavate deep enough to allow for both the gravel base and the concrete slab thickness.

Use stakes and string lines to mark the footprint, square the corners with a 3-4-5 triangle, and check the grade with a laser level. A consistent depth across the pad keeps your slab thickness uniform and prevents weak spots.

Compact the Soil and Add Gravel

Compact the exposed soil using a plate compactor before adding gravel.

Install 4–6 inches of compactable gravel in 2-inch lifts, compacting each layer separately before adding the next. This creates a stable base that supports the reinforced concrete slab and reduces movement below the surface.

Install the Vapor Barrier

Lay a 6–10 mil vapor barrier across the entire slab area. Overlap seams by at least 6 inches and tape them securely.

A vapor barrier helps stop ground moisture from migrating through the concrete floor, protecting coatings, tools, flooring systems, and stored equipment from moisture damage. For a heated garage, this step is non-negotiable.

Set Forms and Footings

Install form boards around the slab perimeter and verify they are square and level before pouring concrete.

If local code requires frost footings or perimeter foundations, excavate and reinforce those areas before placing concrete. Garages attached to existing structures may also require expansion joints where the new slab meets the foundation wall.

Add Reinforcement

Concrete naturally develops small cracks as it cures and expands with temperature changes. Reinforcement helps hold those cracks together and prevents vertical movement that can damage the slab over time.

Wire Mesh vs Rebar

Wire mesh and rebar both add tensile strength, but they serve different purposes.

Wire mesh helps control surface cracking caused by shrinkage and temperature changes. Rebar adds structural strength and helps distribute heavier loads across the slab foundation.

For most residential garages, welded wire mesh is sufficient. Garages supporting heavier trucks, lifts, or equipment should use a #3 or #4 rebar grid spaced 18 inches apart.

Place all reinforcement on chairs or bolsters so it sits near the middle of the slab depth. Reinforcement laying directly on the ground provides little structural value.

Insulation and Radiant Floor Layout

If you plan to heat the garage, install rigid foam insulation above the vapor barrier before placing reinforcement.

Radiant floor tubing should be tied securely to the reinforcement grid and pressure-tested before concrete placement begins.

Mixing Concrete On Site vs Ready-Mix Delivery

Ready-mix trucks work well for large pours with easy site access, but they can become expensive for remote locations, smaller pours, or projects with limited access.

Portable continuous mixers allow homeowners and contractors to mix concrete directly on site while maintaining a steady pour rate. The MudMixer is designed for continuous mixing using bagged concrete, making it easier for smaller crews or solo users to handle garage slab projects without stopping between batches.

Mix and Pour the Concrete

Start pouring at the farthest corner and work toward your exit point. Maintain a consistent mix throughout the pour and avoid long delays that can create cold joints between sections.

A standard 24x24-foot garage slab requires roughly 7 cubic yards of concrete, or approximately 270 eighty-pound bags of concrete mix.

Choose the Right PSI Rating

For most car garage floors, 3,000 PSI concrete is the minimum compressive strength recommended. A 4,000 PSI mix provides added durability and better long-term performance for heavier traffic.

If the garage will support heavier vehicle traffic, trailers, or lifts, use at least 4,000 PSI concrete.

Watch the Air Temp

Concrete performs best when poured between 50°F and 90°F.

Cold temperatures slow the curing process and reduce early strength gain. Hot weather causes moisture to evaporate too quickly, making finishing more difficult and increasing surface cracking risk.

For hot-weather pours, start early in the morning. During cooler weather, pour during the warmest part of the day.

Pour, Spread, and Screed

Place concrete evenly across the slab and spread it level with the top of the forms. Use a screed board in long sawing motions to remove high spots and fill low areas.

Maintaining a continuous pour helps reduce weak seams and cold joints across the slab surface.

In the Mix: 6 Yards, One Guy, 2 Days

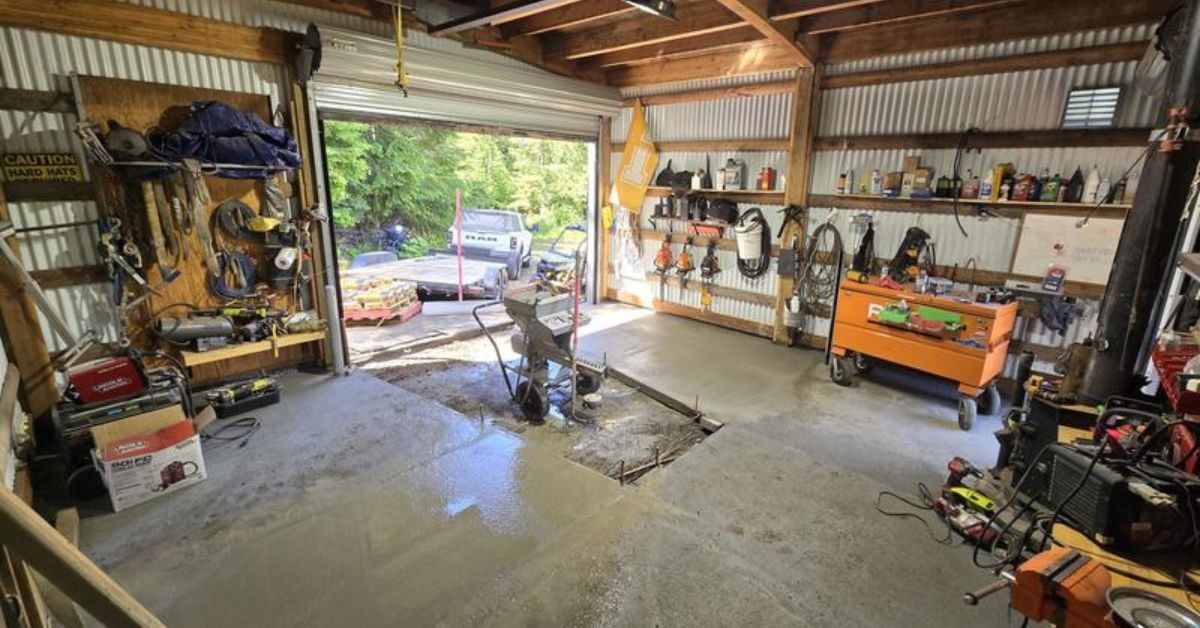

One MudMixer customer used the mixer to pour a garage slab at an off-grid cabin where ready-mix delivery was impossible. Working alone, he completed roughly 6 yards of concrete over two days using 60-pound bags and a hopper extension to reduce reload time.

For solo pours, breaking the slab into manageable sections can make screeding and finishing easier before the concrete begins setting.

"The mudmixer was the hero last week. Poured a shop floor at an off-grid cabin where I cannot get concrete trucks. Poured it in roughly 8'x8' squares over two days. 6 pallets of 60# bags. Just me and about 4 hours each day over two days, including set up and cleaning. The hopper extension was a bit pricey but well worth it to add the extra bags and be able to screed things out." - David S.

Pour Concrete Garage Slabs With the MudMixer

The MudMixer is a portable, electric continuous mixer built to handle concrete, mortar, stucco, grout, and poolkrete straight from bagged mix. Just load dry material into the hopper, set the fully adjustable water dial, and a horizontal auger combines the mix and water before pushing it down the chute. The result is a consistent flow of mixed concrete delivered exactly where you need it.

The hopper holds 120 lbs on its own and bumps up to 300 lbs with the optional hopper extension, so you spend less time reloading and more time placing concrete before the first sections start setting.

For a garage slab, that changes the math on the job. One person can mix about 1 cubic yard of concrete per hour, which makes solo and two-man pours workable. The water dial puts an end to soupy or dry batches, and continuous mixing means no cold joints between 8x8 sections. No truck access, no problem.

How to Finish a Garage Concrete Slab

Concrete finishing happens in stages as the slab begins curing. Timing matters because finishing too early or too late can weaken the surface.

Step 1: Bull Float the Surface

Use a bull float immediately after screeding to smooth ridges and push aggregate below the surface.

Step 2: Wait for Bleed Water to Evaporate

Do not begin hand finishing while water is still sitting on the surface. Finishing too early traps moisture inside the slab and weakens the surface layer.

Step 3: Hand Float or Trowel

Use a magnesium float to smooth the slab surface. Steel trowels create a smoother finish, while floated finishes provide slightly more traction.

Step 4: Apply a Broom Finish

Drag a damp push broom across the slab once the surface is firm enough to hold texture.

A broom finish improves traction and helps reduce slipping when the garage floor becomes wet.

Step 5: Cut Control Joints

Cut control joints every 8–12 feet at roughly one-quarter of the slab depth.

Control joints help direct cracking into straight lines instead of allowing random cracks to form across the slab surface.

Step 6: Install Expansion Joints

Install expansion joint material anywhere the slab meets fixed structures like foundation walls, garage door thresholds, or adjacent concrete pads.

Cure the Concrete Properly

Concrete curing directly affects slab strength, durability, and crack resistance.

Concrete reaches roughly 70% of its final strength within 7 days and continues curing for about 28 days. Keep the slab moist for at least 7 days, hold off foot traffic for 24 to 48 hours, and keep vehicular traffic off for a minimum of 7 to 10 days.

Curing options:

• Plastic sheeting taped down at the edges
• Wet burlap, kept damp twice a day
• Liquid curing compound sprayed on the surface

Pour With Confidence

Pouring a garage cement slab comes down to prep, placement, and patience. Plan the job, build the base right, reinforce for the load, and give the concrete time to cure. The trickiest part for most residential pours isn't the work itself, it's getting the concrete to the forms. That's where the right mixer pays for itself on the first job.
