Technical
Specs & Info
Full specifications, dimensions, electrical requirements, and safety features for every MudMixer model.

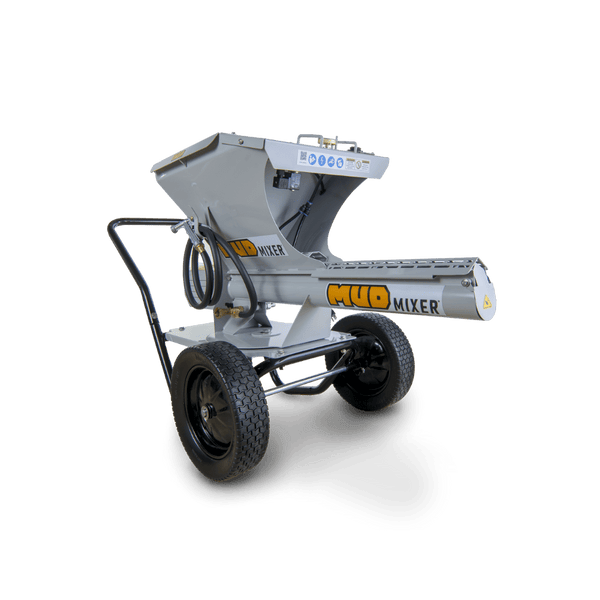

MudMixer Evolution
$3,695.00
In Stock — Ships 1-2 Business Days
The flagship continuous mixer. 45+ bags/hr. 1 yard per hour output.
Shop NowDetails
- Overall Length 66.5 in.
- Overall Width 27.5 in.
- Overall Height 35 in.
- Chute Height 16 in.
- Weight 145 lbs.
- Hopper Capacity 120 lbs.
- Body Construction 14 Ga. High-Strength Steel
- Frame Construction 1 in. Steel Pipe
- Tires Marathon Flat-Free
Performance
- Output Rate 45+ bags/hr (80 lb)
- Continuous Output 1 yard/hr
- Cleanup Time 5 minutes
- Setup Time Under 5 min

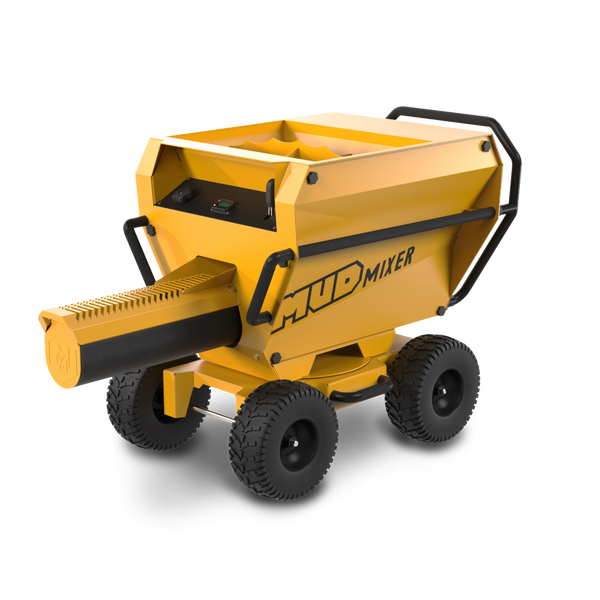

MudMixer Pro
$5,299.00$5,995.00
Introductory Pricing — Order Now
3+ cubic yards per hour. 320 lb hopper. The commercial workhorse.
Shop NowDetails
- Motor 1.5 HP
- Hopper Capacity 320 lbs.
- Output Rate 135 bags/hr (80 lb)
- Continuous Output 3+ cubic yards/hr
- Body Construction Heavy-Duty Steel
- Tires 4 All-Terrain
- Swivel 360 degrees
- Chute 6 in. removable rubber
- Auger Quick-release
Cleanup & Maintenance
- Cleanup System Hose w/ spray nozzle
- Chute Removal Removable rubber
- Auger Access Quick-release
- Warranty 2-year commercial
Electrical
- Motor Protection IP55
- Water Flow Built-in flow meter
- Water Input Fully adjustable
Safety Features
- Covered control panel
- Water-sealed motor and electronics
- Heavy-duty steel construction throughout
Key Advantages
- Built-in bag rest area for efficient loading
- 360-degree swivel for precise pour placement
- Wrap-around handle for easy maneuvering
Compare Models
Side-by-side specifications to help you choose the right MudMixer for your operation.
| Specification | Evolution — $3,695 | PRO — $5,299 |
|---|---|---|
| Output Rate | 45+ bags/hr | 135 bags/hr |
| Continuous Output | 1 yard/hr | 3+ cubic yards/hr |
| Hopper Capacity | 120 lbs | 320 lbs |
| Motor | 250 W | 1.5 HP |
| Tires | 2 Marathon Flat-Free | 4 All-Terrain |
| Swivel | 330 degrees | 360 degrees |
| Body | 14 Gauge Steel | Heavy-Duty Steel |
| Motor Protection | IP55 | IP55 |
| Flow Meter | — | Built-in |
| Bag Rest Area | — | Integrated |
| Weight | 145 lbs | TBD |
| Warranty | 2-year commercial | 2-year commercial |
| Setup Time | Under 5 min | Under 5 min |
| Cleanup | 5 min hose-down | Spray nozzle + removable chute |
Resources & Downloads
Manuals, warranty details, and patent information.
